Municipal water pipeline monitoring

it@mms-adv.gr — Thu, 22 Oct 2020 13:53:09 +0000

Introduction

Pressure in a municipal water system needs to be maintained kept at 0.3 Mpa in order to be able to deliver a proper stream of tap water to homes and businesses. Many water companies all over the world use remote monitoring systems in order to be able to immediately respond to leakages and sudden drops of water pressure.

Requirements

- Monitor pressure in points of interest in a distributed municipal water pipeline system.
- Monitor and report data from every pressure point to a central database or SCADA system.
- Alert immediately on sudden pressure drops threshold limit.
- Take advantage of a cellular communications network using SMS and GPRS communications.
- High expandability.

Proposal

Infinite SCOM-100 is a GSM/GPRS Edge RTU designed specifically for remote monitoring systems. Traditional cellular products use polling to request data, which requires a static and public IP. SCOM-100 can communicate with a central database or SCADA system regardless of what kind of IP address it uses over GPRS.

In addition, it provides real time data from the remote location, which is impossible with a polling system. Moreover users at the central station can issue commands to the remote stations to perform standard control actions because the SCOM-100 supports local functionality, making it a truly PC-free solution.
Traditional polling systems can take up to 3-4 minutes to obtain four different pressure values from four different monitoring sites. The SCOM-100 GPRS communications deliver the information in just a few seconds. Furthermore receive SMS alerts instantly while maintaining GPRS connectivity. SCOM-100 communicates via SMS and GPRS with users, PCs, other SCOM-100 units in M2M all at the same time. The SCOM-100 OPC Server software integrates seamlessly with any SCADA system.

Why SCOM-100

All-in-one cellular GPRS quad band solution
Real-time data acquisition
Easy to implement and maintain
Seamless connection to SCADA via OPC server
SMS alerts & M2M functionality

Read more at,

Municipal water monitoring.pdf

Το άρθρο Municipal water pipeline monitoring εμφανίστηκε πρώτα στο Infinite Informatics.

Advanced Irrigation System Control & Monitoring

it@mms-adv.gr — Thu, 22 Oct 2020 13:49:27 +0000

Introduction

SCOM-100 is an SMS alerting & remote control unit with I/O expansion capability. It can fit a vast series of applications ranging from domestic to industrial. In order to use it all that is needed is a SIM card and a mobile phone. It is desired to setup and operate an advanced irrigation system based on a Hunter technologies ICC irrigation controller and migrate an SCOM-100 unit to remotely manage the installation and receive alerts.

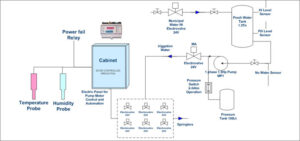

The system consists of:

- Water is supplied either or even both via a municipal link and a water well.
- Water supplied passes through a Sand cyclone to purify it from sand & ground residues.
- A Subsidence Tank withholds all remaining water residues and fills 2 water tanks 1.5 tn each connected via appropriate piping.
- Level control on these tanks is performed via simple dielectric sensors.
- The water tanks are connected to a pump, which operates via a pressure switch and an electro valve.
- Pumped water is driven to sprinklers via respective electro valves.
- A Hunter ICC controller takes care of irrigation based on preset daily schedules.

An electric panel holds all automation elements needed and an SCOM-100 unit that is responsible for remote alerting, monitoring and control.

SCOM-100 can also as auxiliary unit, control and manage the irrigation remotely.

Measurements & Monitoring

Measure temperature and receive alerts when limits are exceeded,
Measure humidity and receive alerts for exceeding limits,
Receive alerts whenever there is an automation related problem,
Receive alerts whenever there is a power failure,
Receive notifications when the system operated,
Receive notifications that the system has failed to operate.

Security

Receive alerts whenever the pumping station door opens without a key.

Control

Issue remote commands to configure seasonable irrigation schedules bypassing the Hunter ICC,
Issue remote control commands to start the irrigation system on demand bypassing the Hunter ICC,
Issue remote control commands to postpone an irrigation schedule on the Hunter ICC,
Issue remote control commands to reset the system,
Issue remote commands to configure set points and limits.
Issue remote control commands to monitor current measurements and system status.

System setup

Elements needed to set up such a system:

An SCOM-100 controller.
A 12V DC power supply to power the SCOM-100.
A GSM antenna to attach on the SCOM-100.
A SIM card to insert in the SCOM-100 unit.
A small plastic electric panel-cabinet to mount all the elements.
A temperature probe (typically an AD592 temperature sensor).
A humidity probe (typically a 5-95%, 4-20mA).
A typical magnetic door contact to attach on a digital input of SCOM-100.
A power loss detection relay to be attached at a digital input to monitor power failures.
A series of relays to monitor pump thermal/magnetic protection switch, power asymmetry, no water conditions, water level, etc. These relay contacts should be connected to appropriate SCOM-100 digital inputs.

Additionally appropriate switches, relays and contacts can allow the user to configure the system for time scheduled lighting control and swimming pool monitoring & control

Functionality

SCOM-100 offers advanced features to create and manage daily and weekly schedules. A user can create seasonable schedules and remotely decide on which will be used from now on.
Temperature
If the temperature rises above 30°C an SMS alert will be issued to a list of recipients which can decide and decide on,

Increase the irrigation schedule,
Monitor the temperature and decide to issue remotely an immediate irrigation schedule,
Change the schedule by attaching and detaching an auxiliary schedule.

Humidity

High levels which mean that it has rained can immediately restrict irrigation schedules to take effect.
Potential water leakage in the pump room can also be immediately alerted.

Fire
Remotely instruct the irrigation system to start in case of a nearby fire.
Power & automation management

Receive an alert via SMS when there is a power failure.
Remotely start a power generator.
Remotely reset thermal/magnetic switches of pump motors.
Remotely issue commands to fill water tanks.
Remotely reset the system.
Automatically control irrigation electro valves.
Extend the SCOM-100 unit with an AI expansion unit and also measure the quality of power e.g. voltage, current, frequency.

Advanced Functionality

Automatically engage and disengage the irrigation system during change of seasons or high rain seasons.
Monitor online the system from everywhere.
Issue remote commands to configure the entire system from a mobile phone.

Note: A single SCOM-100 unit, which has by default 2 analogue inputs, 4 digital inputs, and 4 relay digital outputs can manage all the above. The SCOM-100 can be extended for more digital inputs and outputs, more analogue sensors using extension units.

Read more at,

Advanced irrigation system.pdf

Το άρθρο Advanced Irrigation System Control & Monitoring εμφανίστηκε πρώτα στο Infinite Informatics.

Simple irrigation system control & monitoring

it@mms-adv.gr — Fri, 16 Oct 2020 06:45:26 +0000

Introduction

SCOM-100 is an SMS alerting, remote control & monitoring unit. It is a low cost, expandable I/O unit that can fit a vast series of applications ranging from domestic to industrial. In order to use it all that is needed is a SIM card and a mobile phone.

It is desired to setup and operate a simple irrigation system based on SCOM-100.

Measurements & Monitoring

Measure temperature and receive alerts when limits are exceeded,
Measure humidity and receive alerts for exceeding limits,
Receive alerts whenever there is an automation related problem,
Receive alerts whenever there is a power failure,
Receive notifications when the system operated,
Receive notifications that the system has failed to operate.

Security

Receive alerts whenever the pumping station door opens without a key.

Control

Issue remote commands to configure seasonable irrigation schedules.
Issue remote control commands to start the irrigation system on demand.
Issue remote control commands to postpone an irrigation schedule.
Issue remote control commands to reset the system.
Issue remote commands to configure set points and limits.
Issue remote control commands to monitor current measurements and system status.

System setup

Elements needed to set up such a system:

An SCOM-100
A 12V DC power supply to power the SCOM-100
A GSM antenna to attach on the SCOM-100
A GSM SIM card to insert in the SCOM-100 unit
A small plastic electric panel-cabinet to mount all the elements.
A temperature probe (typically an AD592)
A humidity probe (typically a 5-95% 4-20mA).
A typical magnetic door contact to attach on a digital input of SCOM-100.
A power loss detection relay to be attached at a SCOM-100 digital input to monitor power failures.
A series of relays to monitor pump thermal/magnetic protection switch, power asymmetry, no water conditions, water level, etc. These relay contacts should be connected to appropriate SCOM-100 digital inputs.

Additionally appropriate switches, relays and contacts can allow the user to configure the system for time scheduled lighting control and swimming pool monitoring & control.

Functionality

Increase the irrigation schedule,
Monitor the temperature and decide to issue remotely an immediate irrigation schedule,
Change the schedule by attaching and detaching an auxiliary schedule.

Humidity

High levels, which mean that it has rained, can immediately restrict irrigation schedules to take effect.
Potential water leakage in the pump room can also be immediately alerted.

Fire
Remotely instruct the irrigation system to start in case of a nearby fire.
Power & automation management

Receive an alert via SMS when there is a power failure.
Remotely start a power generator.
Remotely reset thermal/magnetic switches of pump motors.
Remotely issue commands to fill water tanks.
Remotely reset the system.
Automatically control irrigation electrovalves.

7. Extend the SCOM-100 unit with GE- AI-4 analog input expansion module and also measure the quality of power e.g. voltage, current, frequency.

Advanced Functionality

Automatically engage and disengage the irrigation system during change of seasons or high rain seasons.
Monitor online the system from everywhere.
Issue remote commands to configure the entire system from a mobile phone.

Note: A single SCOM-100 unit which has by default 2 analogue inputs, 4 digital inputs, and 4 relay digital outputs can manage all the above. The SCOM-100 can be extended for more digital inputs and outputs, more analog sensors using extension units.

Read more at,

Simple irrigation system.pdf

Το άρθρο Simple irrigation system control & monitoring εμφανίστηκε πρώτα στο Infinite Informatics.

M2M water tank & pump remote control

it@mms-adv.gr — Fri, 16 Oct 2020 06:40:41 +0000

Introduction

It is very often that in a water system there are water tanks that act as pressure boosters. Level monitoring in such tanks is very important to ensure that whole regions with consumers will not be left without water. When the water level drops a remote pump house must operate to send water to refill the tanks. Such pump houses maybe located hundreds of meters or even kilometers away from the tanks. Automatic communications between tanks and pump houses ensure an unmanned system that operates 24/7.

Requirements

Monitor level at water tanks scattered in a geographic region.
Monitor pump houses and automatically receive commands from tanks to increase pressure in a water pipeline system.
Alert immediately on empty tanks.
Take advantage of a cellular communications network using SMS and GPRS communications.
High expandability.

Proposal

Infinite SCOM-100 is a GSM/GPRS Edge RTU designed specifically for remote monitoring systems.
Using machine to machine (M2M) SMS commands SCOM-100 devices, on event can send commands to other SCOM-100 devices to perform a local action. For example at a water tank a low level digital event can trigger an SMS message to a remote pump station to start a pump to refill the remote tank.

Any number of SCOM-100 units can communicate with each other using the M2M functionality. Digital and analog measurements and events can trigger M2M messages to remote stations and maintenance personnel.
Moreover the SCOM-100 is capable to connect to a central station using GPRS communications and standard OPC Server functionality to connect to a host SCADA system.
SCOM-100 communicates via SMS and GPRS with users, PCs, other SCOM-100 units in M2M, all at the same time.

Why SCOM-100

All-in-one cellular GPRS quad band solution
Machine 2 Machine communications via SMS
Real-time data acquisition using GPRS
Easy to implement and maintain
Seamless connection to SCADA via OPC server
SMS Alerts & remote control

Το άρθρο M2M water tank & pump remote control εμφανίστηκε πρώτα στο Infinite Informatics.

Computer room monitoring & alarming

it@mms-adv.gr — Thu, 15 Oct 2020 07:58:22 +0000

Introduction

IT infrastructure monitoring is a necessity for all modern companies. Server down time means losses in productivity and resources. Regardless if the IT equipment in a server room is old or consider as legacy every server room should be protected with extensive monitoring and alerting devices.
SCOM-100 is a GSM/GPRS alerting, remote monitoring & control unit with expandable I/O capable to handle demanding applications such as alerting and monitoring of server rooms.

Requirements

Alerting & Monitoring

Room Temperature,
Server and IT equipment Temperature,
Humidity and leakages,
Fire and Smoke alerting,
Power
Access control

Local & Remote Control

Access the room e.g. open the door,
Start an Air-conditioning unit,
Open a window,
Sound an intruder siren,
Engage or disengage power.

Functionality

Monitor measurements in server rooms in geographically distributed server rooms.
Monitor and report data to a central database or SCADA system.
Alert immediately using SMS.
Take advantage of a cellular communications network using SMS and GPRS communications.
High expandability.

Proposal

Infinite SCOM-100 is a GSM/GPRS Edge compatible cellular RTU solution designed specifically for remote monitoring of server rooms. Compared with traditional SNMP solutions, that require Ethernet presence, cellular offers a reliable way access server rooms when the existing IT infrastructure has failed.

SCOM-100 can communicate with a central database or SCADA system regardless of what kind of IP address it uses over GPRS. In addition, it provides real time data from the remote location allowing users at the central station to issue commands to the remote stations to perform standard control actions because the SCOM-100 supports local functionality, making it a truly PC-free solution. Forget traditional IT solutions. SCOM-100 is a 24/7 RTU that can receive and send SMS alerts instantly while maintaining GPRS connectivity.
SCOM-100 is the only device in the world that communicates via SMS and GPRS with users, PCs, other SCOMs in M2M all at the same time.
Take advantage of the SCOM-100 OPC Server software that integrates seamlessly with any SCADA system.

Why SCOM-100

All-in-one cellular GPRS quad band solution
Real-time data acquisition
Easy to implement and maintain
Seamless connection to SCADA via OPC server
SMS alerts & M2M functionality (one device to another)
Low cost expansion I/O

Το άρθρο Computer room monitoring & alarming εμφανίστηκε πρώτα στο Infinite Informatics.

Radio tower monitoring

it@mms-adv.gr — Tue, 13 Oct 2020 07:09:32 +0000

Introduction

Τraditionally radio tower facilities rely on a PLC with a GPRS modem to provide remote control and monitoring functionality. This approach is low level requires PLC software programming and faces the IP problem. The existence of dynamic and private IP make the attempt to establish reliable and efficient bidirectional communications complex. Solutions with DDNS are simply not adequate and usually cause rather than solve problems.
SCOM-100 is a GSM/GPRS alerting, remote monitoring & control unit with expandable I/O capable to handle demanding applications such as alerting and monitoring of Radio Towers.

Requirements

Support GPRS and SMS communications
Remote control capability
Combine industrial standard AI, DI, DO and have expandability
Work with private and dynamic IP address
Integrate with a SCADA system via standard OPC communications

Proposal

Infinite SCOM-100 is a GSM/GPRS Edge compatible cellular RTU solution designed specifically for remote monitoring systems. SCOM-100 supports both dynamic and static IP making it possible to communicate with a central database or SCADA system over GPRS. In addition, it provides real time data from the remote location.

Users at the central station can issue commands to the remote stations to perform standard control actions because the SCOM-100 supports local functionality. SCOM-100 communicates via SMS and GPRS with users, PCs, other SCOM-100 units all at the same time. The SCOM-100 OPC Server integrates seamlessly with any SCADA system.
SCOM-100 is designed to operate extreme conditions with operational temperature at -20°C to +60°C. It has build in 2 analogue inputs, 4 digital inputs with counting capability and 4 relay outputs. It can expand using I/O expansion modules up to a total of DI: 36, DO: 20, AI: 18.

Why SCOM-100

All-in-one cellular GPRS quad band solution
Real-time data acquisition
Easy to implement and maintain
Seamless connection to SCADA via OPC server
SMS alerts and M2M functionality concurrently with GPRS
Low cost expansion I/O modules

Read more at,

Radio Towers Motoring.pdf

Το άρθρο Radio tower monitoring εμφανίστηκε πρώτα στο Infinite Informatics.

Toll free call access control

it@mms-adv.gr — Mon, 12 Oct 2020 08:40:46 +0000

Introduction

More and more industrial and trading companies are upgrading their security systems to include automated gates. Gate access control of parking areas, loading and unloading zones are common targets. ARC-10 GSM Controller, combined with a dedicated PC application for user management, can provide a secure entrance access control to a company’s facilities.

Requirements

Low cost user identification without special badges or dedicated remote controls.
Unattended gate accessibility.
Convenient user management.
Remote control capability of the gate accessibility.
Tampering alarm via SMS.

Proposal

Infinite ARC-10 GSM controller provides a secure entrance access by receiving a toll free phone call from a registered user. A special contact, connected to an ARC-10 digital input, can initiate an SMS alert to security personnel, in case of a tamper attempt. Up to 10 power users can be qualified to control (enable or disable) the gate accessibility via SMS and receive alerts from the unit.
The ARC-10 Configurator application can be used to manage a user database and synchronize it with the ARC-10 memory. The PC application communicates with the GSM controller via an occasional or a fixed serial connection. A laptop can be used for occasional connections. RS232 to RS-485 converters can be applied to establish a fixed serial connection from a distant point.

ARC-10 Configurator synchronizes every modification of a database record with the corresponding entry in the ARC-10 memory. In the above illustration, a user’s phone number, which was previously edited in the database, is synchronized, by automatically executing the following 3 steps:

The erroneous phone number is removed from the device memory (CUD command),
The correct phone number is entered (CUN command).
If the commands are executed successfully, the edited record is validated, else the editing is cancelled.

System features

Intuitive entrance access, using a mobile phone.
Automatic synchronization of the database table with the ARC-10 GSM controller’s memory.
Import capability of a user file in the database table with respective updating of the ARC-10 memory (.csv & .txt files).
Insert, edit or delete call users (up to 500 entries) or power users (up to 10 entries).
Complete ARC-10 configuration and online control from within the ARC-10 Configurator application.
Remote control and device configuration options for qualified personnel, via SMS.
Enable or disable gate accessibility via SMS.
Tamper alarm capability, via SMS.

M2M Reservoir Level Control

it@mms-adv.gr — Wed, 07 Oct 2020 08:24:13 +0000

Introduction

The water level regulation of a reservoir, used for irrigation purposes, is the requirement for an M2M control system. The reservoir is located in an off-grid area, on a hill. A pump house located below the hill, feeds the reservoir from a near river. The system is shown in the figure below.

Proposal

A BSC-50E battery powered RTU with an ultrasonic sensor, is used for tracking the reservoir water level. BSC-50E sends M2M commands to an ARC-10 GSM controller, which controls the pump operation through its relay outputs. The pump automation system (e.g. a PLC) supports the following functions:

Function	Actuator / Indicator	Action
Start Operation	Push button (Start button)	Enable Remote control, Turn Pump ON for t=T1 ¹⁾
Stop Operation	Push button (Stop button) or Digital input IN1	High pulse on IN1–> Cancel system operation
Remote Control	Digital input IN2	High to Low transition –> Turn Pump ON for t=T2 ²⁾, Low to High transition –> Stop PUMP)
Thermal protection	Digital output OUT1	Low –> Normal operation, High –> Protection active (Operation cancelled)

¹⁾ T1 is the time, depending on the pump flow rate, needed to fill the reservoir from empty state to a level between H and HH.
²⁾ T2 is the time it takes to reach a level between H and HH, starting with water level L.

ARC-10 outputs DO1, DO2 are connected to IN1 and IN2 of the pump control system respectively. The thermal protection indication (OUT1) is connected to ARC-10, digital input 1 (DI1).
On the other side, an ultrasonic sensor (Massa M300) is connected to BSC-50E, analog input 1 (AI1). Two alarm limits are set on the analog measurement:

Alarm limit low, which corresponds to level L.
Alarm limit high, which corresponds to level H.

The water level is logged every hour. A level switch, indicating the HH water level, is connected to BSC-50E, digital input 1 (DI1).

Operation description

After start up, the pump feeds the reservoir, until the water level reaches the high limit (Level H). In the meantime BSC-50E scans the water level every minute.
On reaching the high limit, BSC-50E sends an M2M SMS, commanding the ARC-10 unit to switch DO2 on. The pump is turned off. At the same time, BSC-50E switches level scanning to a lower rate (e.g. every 15 minutes), to save power.
The pump remains in the hold state until the water level drops, due to irrigation flow, below the low limit. Then BSC-50E sends an SMS, commanding the ARC-10 unit to switch DO2 off. The pump is turned on. At the same time, it switches to higher sampling rate (every minute) to keep track of the reservoir filling.
Once a day, BSC-50E sends the water level logs to a system administrator.

Alerting

If the water level reaches, for any reason, the HH limit, the level switch activates an alarm on BSC-50E, DI1. BSC-50E sends an SMS command to the ARC-10 unit, to switch DO1 on for 2 seconds. The feeding system operation is cancelled. An additional SMS is sent to maintenance personnel, alerting for the malfunction.
In case of pump overheating, ARC-10 sends a respective alert to maintenance personnel.

Battery lifetime

The lifetime of the BSC-50E internal battery (LSH-20) depends on the water feeding cycles per day, as shown in the table below:

Feeding cycles	M2M SMS	Daily consumption [mAh]	Battery Lifetime [Years]
2	4	16.7	2.13
4	8	20.2	1.76
6	12	24.6	1.44
8	16	31.0	1.14
10	20	37.4	0.95

Read more at,

M2M Reservoir Level Control.pdf

Το άρθρο M2M Reservoir Level Control εμφανίστηκε πρώτα στο Infinite Informatics.
