WA Manager Help

Configuring the digital inputs

Scope: All Devices

Click on the field to edit string and numeric parameters.

Read the "Device Configuration" section of the Device User Manual.

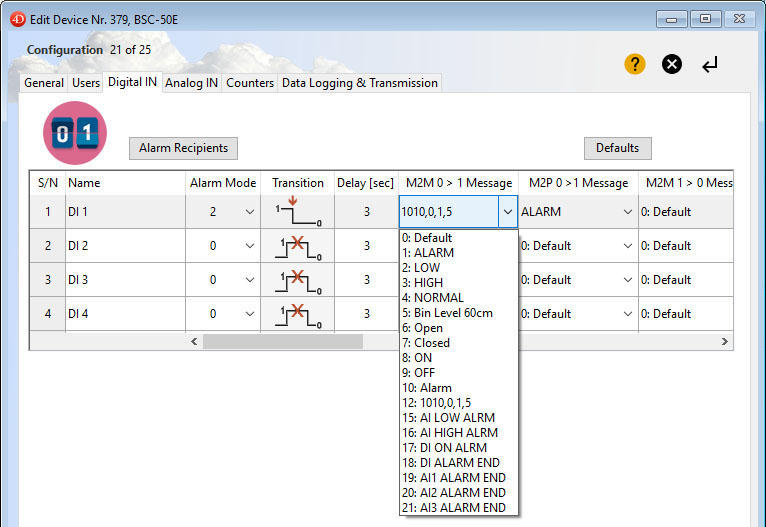

For fields with choice list, select a predefined value.

Digital input parameters include:

Parameter	In Defaults	ASCII Com	Range	BSC-50x	ADU-500	ADU-510	ADU-700	ADS-200	ADS-260	ADS-210	ADS-102
S/N (Channel number)	+	1100	x	x=4	x=3	x=3	x=4+32	x=1	x=1	x=1	x=1
DI name		1100	15 char max.	+	+	+	+
Alarm mode		1100	0-3	+	+	+	+
Alarm delay [sec]		1100	0-255	+	+	+	+
M2M 0 > 1 Message	+	1102	32 char max.	+	+	+	+
M2P 0 >1 Message	+	1101	32 char max.	+	+	+	+
M2M 1 > 0 Message	+	1102	32 char max.	+	+	+	+
M2P 1 > 0 Message	+	1101	32 char max.	+	+	+	+
Send Data on 0>1 AL		1106	yes/no	+	+	+
Send Data on 1>0 AL		1106	yes/no	+	+	+
M2M Restore Message	+	1116	32 char max.	+		+
M2P Restore Message	+	1115	32 char max.	+		+
Send Data on Restore	+	1117	yes/no	+		+
Alt LR Trigger on 0->1		1107	yes/no	+		+
Alt LR Trigger on 1->0		1107	yes/no	+		+
DI Mode		1150	Input/Counter	+	+	+		+	+	+	+

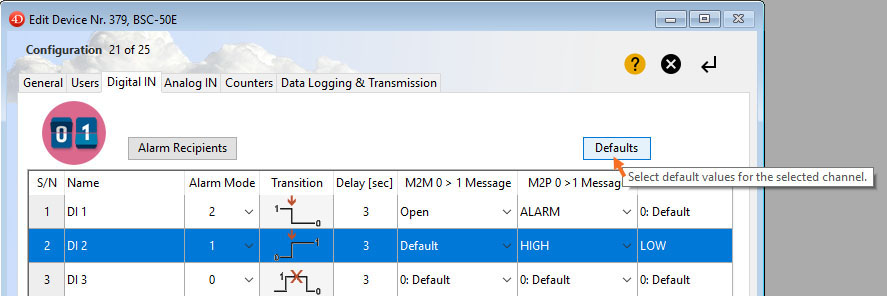

Use the 'Defaults' button to set default values on the selected channel.
