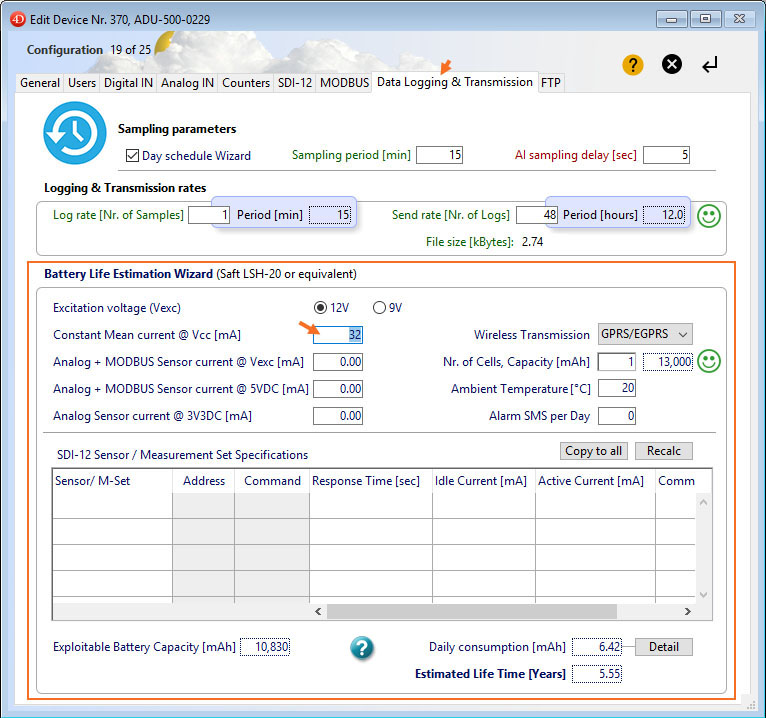

Battery Life Estimation Wizard

Scope: Autonomous Devices

The wizard calculates the estimated battery life according to the device configuration parameters and additional parameters which have to do with the electrical specifications of the external sensors. The latter do not affect the device configuration.

Configuration parameters which affect the battery life are:

Parameter	BSC-50x	ADU-500	ADU-510	ADU-700	ADS-200	ADS-260	ADS-210	ADS-102
SMS attempts	+	+	+	+
Retry delay	+	+	+	+
Status Period	+	+	+	+
Wait period AT	+	+	+	+
RTC Correction	+	+	+	+
Merge alarms	+	+	+	+
Enable Alarm Restore	+		+	+
Transmission Mode		+	+
Purge Logs after TR	+	+	+
Enable Unit Halt	+
DI x State for Halt	+
AI Channel activation	+	+	+	+	+	+	+	+
Counter activation	+	+	+		+	+	+	+
SDI-12 channel activation		+	+		+	+
MODBUS channel activation		+			+	+
MODBUS Protocol		+			+	+
MODBUS Baudrate		+			+	+
Basic sampling period	+	+	+	+
Alternate sample period	+		+
AI sampling delay	+	+	+		+	+	+	+
Log rate	+	+	+	+
Alter. Log rate	+		+
Send rate	+	+	+	+	+	+	+	+
Alter. Send rate	+		+

Additional parameters (user provided), which affect the battery life are:

Parameter	BSC-50x	ADU-500	ADU-510	ADU-700	ADS-200	ADS-260	ADS-210	ADS-102
Excitation voltage (Vexc)	+	+	+	+	+	+	+
Constant Mean current @ Vcc	+	+	+	+	+	+	+
Analog+MODBUS Sensor current @ Vexc	+	+	+	+	+	+	+
Analog+MODBUS Sensor current @ 5VDC	+	+	+	+	+	+	+
Analog Sensor current @ 3V3DC	+	+	+	+				+
Response Time of the SDI-12 channel	+	+	+		+	+
Idle Current of the SDI-12 channel	+	+	+		+	+
Active Current of the SDI-12 channel	+	+	+		+	+
Communication Current of the SDI-12 sensor	+	+	+		+	+
Wireless Transmission Mode		+	+	+
Battery Capacity	+	+	+	+	+	+	+	+
Ambient Temperature	+	+	+	+	+	+	+	+
Alarm SMS per Day	+	+	+	+
