AERINOS ADS-410

Overview

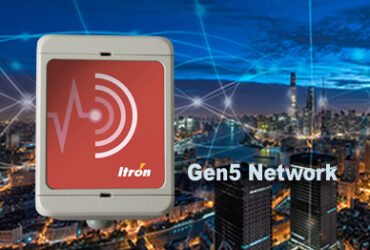

ADS-410 is an ultra low power, battery powered end node for the Itron Gen5 Network. It incorporates a configurable input (digital, pulse counter) an analog input and multiple excitation options for powering transducers. The device supports acquisition of up to 16 measurement channels, based on the popular SDI-12 communication protocol and 8 channels, based on the MODBUS protocol The unit incorporates a Lithium Thionyl Battery supplying system operation for up to 10 years.

SDI-12 Serial Bus

SDI-12 is an asynchronous, ASCII, serial communications protocol that was developed for intelligent sensor instruments that typically monitor environmental, structural engineering and precision agriculture data. The communication is achieved by digital communications. The addressing system allows data recorder to communicate with several microprocessor-based sensors over a single line. ADS-410 is compliant to the SDI-12 Standard Version 1.2 and supports extended commands for sensor configuration, in terminal mode. ADS-410 can collect data from several SDI-12 sensors for a total amount of 8 measurement channels.

RS-485, MODBUS

ADS-410 supports acquisition from sensors with RS-485 interface, using the popular MODBUS protocol (RTU & ASCII). Up to 8 measurement channels from several sensors are supported.

Transducer excitation

The unit provides multiple excitation options for measuring transducers.

Applications

Weather conditions & environmental monitoring
Water/wastewater level & quality
Structural engineering
Precision Agriculture
Smart City
Oil & Gas
Building Management
Power Grid

Application Example using Losant Enterprise IoT Platform

An ADS-410 is installed at our premises operating 24/7. It powers, samples and transmits every 15 minutes measurements from the following sensors,

A Massa M300 ultrasonic sensor measuring 0-400mm
An analogue devices TMP36 temperature sensor measuring -20..+50oC
Battery monitoring sensor measuring consumption in mA

The ADS-410 is powered by one D size lithium Saft LSH20 battery that will allow it to to operate for more than 2.5 years.

View the application Dashboard at,

https://itron.onlosant.com/

Username: guest@infinite.com.gr
Password: infiniteitron

Specifications

Ordering Codes

Code	Description
ADS-410-9	Itron Gen5 end node, 902-928 MHz Band
ADS-410-8	Itron Gen5 end node, 868 MHz Band

Specifications

Power supply
Supply voltage	Internal: 3.6V, 13Ah Lithium Thionyl battery (Saft LSH-20 recommended) External: 5 VDC, regulated
Consumption
Stand by	10μA max.at 3.6V
Communication	902-928 MHz Band, Transmit: average 200mA
Measurement	Up to 1A at 3.6V (according to sensor supply requirements)
Processing unit
System controller	Ultra low power ARM 7 MCU
Configuration memory	16 KByte EEPROM
Configurable Input (IN1)
Digital input	1, dry contact, 0-30VDC
Pulse counter	1, 2KHz.
Analog input	1, Range: 0-1V, 12 bit resolution.
Serial Bus features & options
SDI-12	8 channels, up to 3 sensors, Support of extended commands in Terminal mode
RS-485, MODBUS	8 channels, up to 3 sensors, MODBUS RTU & ASCII protocol
RS-485	Sensors with RS-485 interface and proprietary protocol (OEM versions only)
Sensor excitation
Output 1	12VDC/250mA
Output 2	5VDC/200mA
Communication
865-870 MHz Band	Max output power 25mW
902-928 MHz Band	Max output power 350mW
Antenna connector	SMA connector
Serial interface	USB, up to 115 kBit/s
Other
Temperature	-40°…65°C, operating
Indications	LED, Operation status
Dimensions	124 x 79.5 x 70 mm (with cable gland)
Protection	IP66, IP68
Weight	0.3 kg (without battery)

Downloads

Product Brochures
Document	File
ADS-410, Itron Gen5 Sensor node Datasheet v1.x	ADS-410 Datasheet v1.x.pdf

Technical Documents
Document	File
ADS-410 User Manual v1.x	Contact us for the latest document
LSH-20, D-size, Lithium-thionyl battery	LSH20.pdf
WA Manager User Manual v10.x	WA Manager User Manual v10.x
