iLOGPlus

Introduction

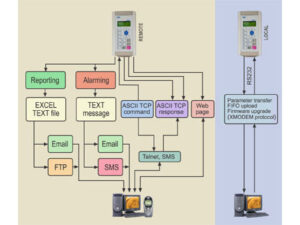

iLOGPlus RTU/Data Loggers are internet enabled devices, specially suited for remote data acquisition, distributed telemetry and remote control. The units act as master devices and send alerts and data files on their own via FTP, email and SMS. All types carry a built-in TCP/IP webserver with live webpages that can be accessed by any Internet browser application. They accept and serve TCP and SMS commands for interactive operation in a SCADA system.
Analog inputs and digital I/O are expandable by means of I/O expansion modules, plugging on a serial I/O expansion bus.

iLOGPlus GSM

The device carries a built-in GSM/GPRS modem and can automatically connect via a mobile telephony network to an ISP provider, to transmit its data via email or ftp and alerts via email or SMS. The unit controls the internal modem power supply for power saving purposes in applications with battery operation.

iLOGPlus LAN

The device carries a built-in Ethernet/LAN adapter and can be directly hooked on to a local network. It can connects via gateway or a GSM network router to the Internet. SMS alerting is supported with an external GSM modem attached on the local serial port.

Advanced features

The following characteristics are common to the 2 device types distinguished by the physical communication medium:

• Dual ARM7 processor architecture.
• 4 high resolution analog inputs (AI1-AI4). Analog inputs can be expanded to 16 by means of 3 GE-AI-4 modular expansion modules.
• 2 constant current sources for PT-100 transducer excitation.
• 4 digital inputs for state recording and alarming. Two of them have pulse counting capability up to 3 KHz supporting sensors with pulse output (power meters, flow meters, etc.). Digital inputs can be expanded to 16 by means of 3 GE-DIO-42 modular expansion modules.
• 2 relay outputs that are user (for remote control) or event triggered. Digital outputs can be expanded to 8 by means of 3 GE-DIO-42 modular expansion modules.
• External DIN rail adaptor with screw terminals for convenient wiring (SCT-04E).
• Power fail safe memory for up to 40,000 channel records.
• Alarm recording and annunciation via email and SMS.
• Scheduled data transmission via email file attachment and FTP.
• TCP and SMS ASCII commands for parameter setting and remote control.
• Internal web server publishing a two pages HTML site on the internet, allowing real time monitoring of the measurements and operating states and allowing limited parameter changing.
• Serial communication RS232 port supporting local communication and convenient parameter setting and firmware upgrading using a PC and the powerful iLOGPlus Transporter utility.
