MATI-100

5 Megapixel HD IoT Cameras

Battery-powered visual monitoring with JPEG images and MQTT telemetry

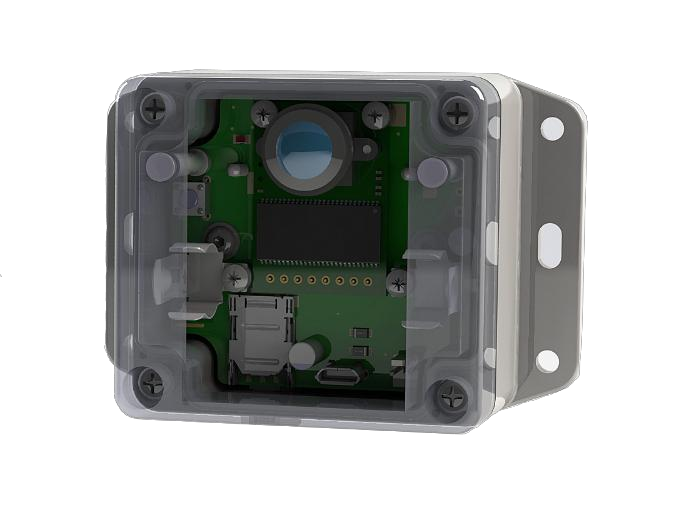

MATI-100 IoT camera in a polycarbonate enclosure

Compact polycarbonate enclosure · IP66

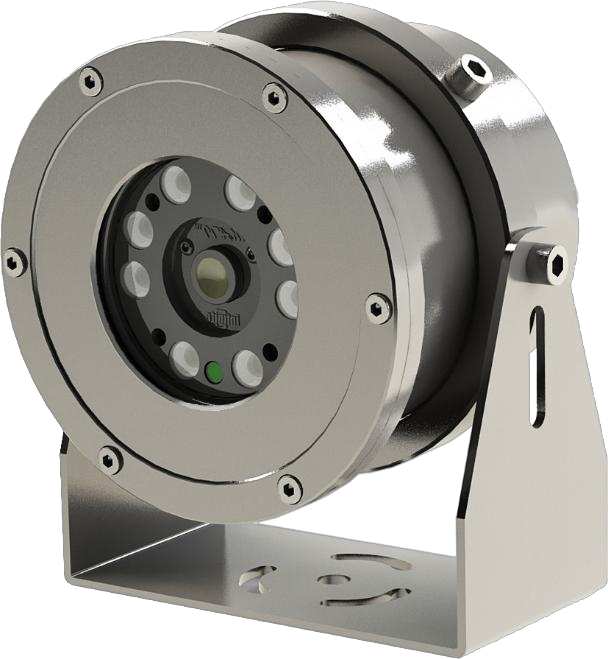

MATI-100 Ex camera with IR night vision and stainless steel enclosure

MATI-100 Ex

Stainless steel Ex enclosure · IR night vision · IP66/IP68

Overview

Introduction

MATI-100 and MATI-100 Ex are battery-powered 5-megapixel IoT cameras for remote visual monitoring. They connect to AERINOS ADS-3xx NB-IoT/LTE-M RTUs through I²C, adding high-resolution images to field telemetry.

Both models capture JPEG images at up to 2592 × 1944 pixels using a low-distortion M12 3.2 mm lens. Images are transferred via MQTT for visual inspection, cloud storage and subsequent AI or machine-learning analysis.

Two models for different installations

MATI-100 is the compact outdoor model, with an IP66 polycarbonate enclosure, dimensions of 119 × 119 × 62 mm and a weight of 0.1 kg. It is suited to smart city monitoring, security, precision agriculture and plant or insect observation.

MATI-100 Ex adds IR night vision and a stainless-steel Ex enclosure rated IP66/IP68. Measuring 128 × 128 × 106 mm and weighing 2 kg, it supports visual monitoring of sewers, water infrastructure, pipes, rail lines and structures.

Image capture and MQTT transfer

The 5 MP CMOS sensor provides image enhancement and JPEG output. Compressed image files are specified at less than 500 Kbytes, supporting transmission over NB-IoT or LTE-M through the connected RTU. MQTT makes the images available to compatible platforms for inspection and further processing.

Battery-powered field operation

The camera is powered at 3.3 V from the connected ADS-3xx RTU. Specified power consumption is 0.8 W, with a maximum current of 200 mA. This arrangement supports visual monitoring at locations without a mains supply.

Setup and enclosure

The cameras are supplied preconfigured for operation. Choose MATI-100 for a lightweight polycarbonate outdoor enclosure, or MATI-100 Ex for stainless-steel construction and IR night vision. Both models operate from -10°C to +55°C.

Applications

Security and safety monitoring
Smart city visual telemetry
Image acquisition for AI and machine-learning analysis
Precision agriculture, plant monitoring and insect observation
Water, sewer and pipe monitoring
Railway and structural inspection

Specifications

Ordering Codes

Code	Description
MATI-100	5 MP HD IoT camera in an IP66 polycarbonate enclosure
MATI-100 Ex	5 MP HD IoT camera with IR night vision and an IP66/IP68 stainless-steel Ex enclosure

Model comparison

Characteristic	MATI-100	MATI-100 Ex
Image sensor	5 MP HD CMOS	5 MP HD CMOS
Maximum resolution	2592 × 1944 pixels with image enhancement	2592 × 1944 pixels with image enhancement
Lens	Changeable M12 3.2 mm HD, low distortion	Changeable M12 3.2 mm HD, low distortion
Image output	JPEG	JPEG
Compressed image size	Less than 500 Kbytes	Less than 500 Kbytes
IR night vision	Not specified	Included
Power supply	3.3 V from ADS-3xx RTU	3.3 V from ADS-3xx RTU
Power consumption	0.8 W; 200 mA maximum	0.8 W; 200 mA maximum
Camera interface	I²C; IP68 M8 4-pin connector	I²C; IP68 connector
Image transfer	MQTT through the connected RTU	MQTT through the connected RTU
Enclosure	Polycarbonate, outdoor	Stainless steel Ex, outdoor
Protection	IP66	IP66 / IP68
Operating temperature	-10°C to +55°C	-10°C to +55°C
Dimensions	119 × 119 × 62 mm	128 × 128 × 106 mm
Weight	0.1 kg	2 kg

Downloads

Product Datasheets

Document	File
MATI-100 — 5 Megapixel HD IoT Camera	Download MATI-100 datasheet V1 (PDF)
MATI-100 Ex — 5 Megapixel HD Ex IoT Camera	Download MATI-100 Ex datasheet V2 (PDF)
