REye-200

Overview

Introduction

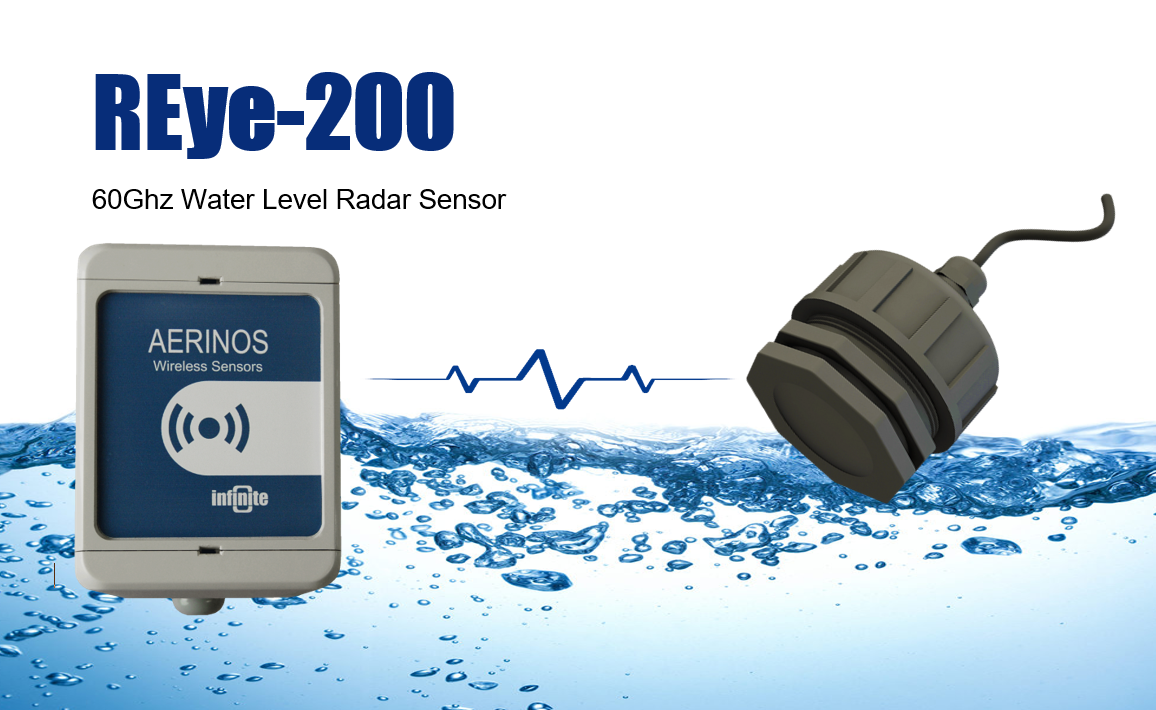

The REye-200 is a radar water level sensor using 60GHz pulsed coherent radar technology. It can be used to monitor the level of sea, lakes, rivers and creeks, with a narrow field of view and fast measurement response time.

The sensor incorporates an ultra-low power microcontroller for data sampling, subsystem activation and overall system control, and can operate on a Lithium Thionyl battery supplying system for up to 10 years.

Modbus interface

The REye-200 is a low power RS485 Modbus radar sensor measuring distance to target, with a Modbus ASCII interface (9600 baud default, address 1) that connects to any device, and can be combined with a variety of Infinite’s products.

It is fully integrated with Itron City Edge, Cumulocity, Microsoft Azure, Amazon AWS, Losant and any platform via MQTT, using an ADS-300 NB-IoT/LTE-M or ADS-410 Itron RTU.

Enclosure and installation

The sensor is housed in a PVC enclosure rated IP67/68 for outdoor use, with an internal antenna and a 1.5 m 4-wire cable. Wiring: Green – RS485 A+, White – RS485 B, Brown – Power + (12VDC), Yellow – Ground.

Applications

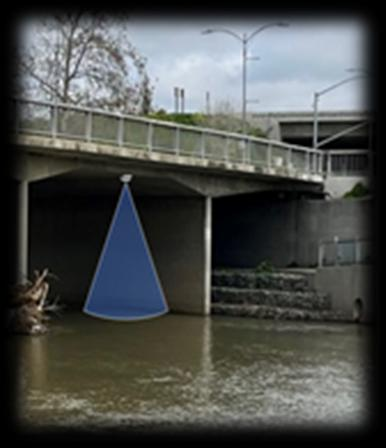

REye-200 flood monitoring under a bridge

Water level at rivers, lakes and sea
Flood monitoring
Silo dry level monitoring
Tank wet level monitoring

Specifications

Ordering Codes

Code	Description
REye-200	60GHz water level radar sensor, Modbus ASCII, IP67/68

Technical Characteristics

Characteristic	REye-200
Transmit frequency	60 GHz, pulsed coherent radar
Range	1-10 m, configurable in steps of 1, 2, 4, 6, 8, 10 m
Accuracy	±2 mm @ 4 m, ±4 mm @ 10 m
Resolution	1 mm
Field of view	Narrow
Connectivity	Modbus ASCII, 1.5 m 4-wire cable
Antenna	Internal
Power supply	12 VDC
Consumption	0.1 W, 80 mA maximum
Operating temperature	-40°C to +85°C
Protection	IP67/68
Enclosure	PVC, for outdoor use
Dimensions	50 × 50 × 70 mm (gland included)
Weight	0.05 kg
Compliance	CE, RoHS (Directive 2002/95/EC)

Downloads

Product Datasheets

Document	File
REye-200 — 60GHz Water Level Radar Sensor Datasheet	Download REye-200 datasheet V1 (PDF)
REye-200 — Radar Sensor Manual (Modbus registers & wiring)	Download REye-200 manual V1.2 (PDF)
